Thermistor WiFi logger with an internal sensor
Sensor internal temperature range 0-50°C, with 0.1° resolution C/°F and an accuracy of ±0.5°C.

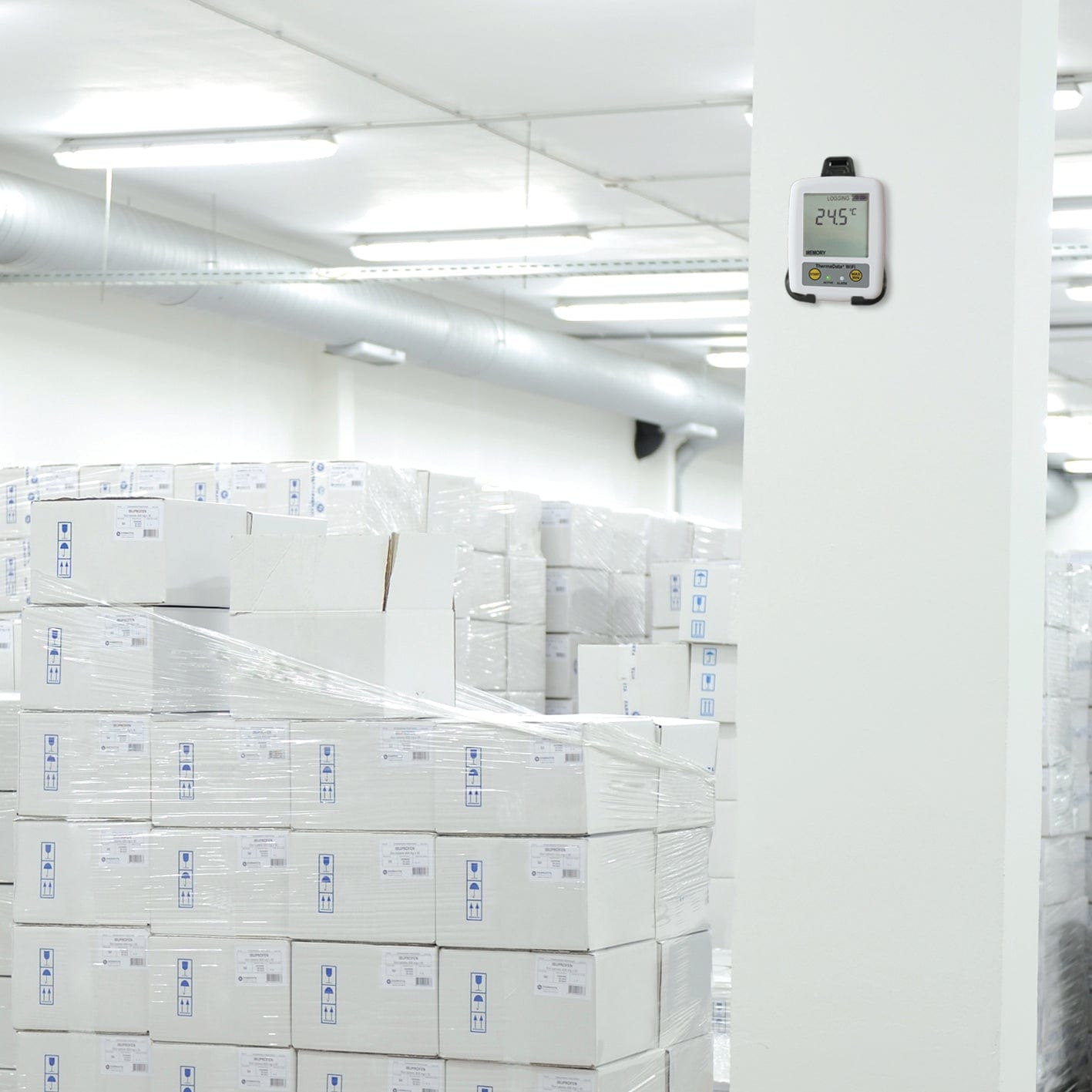

The new WiFi recorders use the latest WiFi wireless technology. Loggers are a low-cost, battery-powered temperature monitoring system that remotely records the temperature of appliances and buildings. Each logger transmits recorded data to an internet-connected WiFi router, which can be accessed and viewed from a PC, laptop or tablet anywhere in the world.< /font>
Loggers have range limited to users WiFi router specifications. Each logger has an intuitive LCD screen that displays temperature, WiFi connection status, max/min logged temperatures, battery status alarm and battery life.
At programmable intervals, the loggers record the temperature of both sensors, recording up to a maximum of 18000 readings (9000 from each sensor). Each logger incorporates a red and green LED. Blinking green LED indicates logger is active/connected and blinking red LED indicates your custom alarms have been exceeded. Each unit comes with a USB cable. The software is FREE to download from our website and is free with no fees or subscriptions.
How does the WiFi thermometer work?
Using each recorder's unique ID, this creates a secure connection between the recorder and the software, accessible and searchable anytime and anywhere with an Internet connection.
Each probe communicates directly with the WiFi router at set intervals to send data over the Internet into your WiFi thermometer
Information is available to be analyzed and exported in a report format
The Software
Powerful yet powerful software helps organize and analyze temperature data to provide management information.
The software has the ability to display up to 32 traces on a graph, the trace colors are user selectable. All files can be viewed as thumbnail icons for easy identification.
The software allows the user to program the sampling rate / recording interval (0.1 to 330 minutes), the communication interval (synchronization) with the PC, the real time clock, °C or °F and a manual start option. It is also possible to include a user ID for each recorder.
The App
By logging into the TD Link app, you can view the status of all wireless thermometers associated with the software anywhere the internet is available.
You can view current readings, settings, and reference information for all your thermometers.
Warning indicators are displayed if there is a problem with an instrument or if a sensor reading has reached alarm levels set in the software.
For each thermometer, you can choose to receive push notifications when an alarm condition has been detected.
TD Link is a read-only application, which cannot be used to modify the settings of the 'instrument.
Available on iOS and Android.
Datasheet
| Beach: |
0 to 50°C |
| Resolution: |
0.1°C / °F |
| Precision: |
± 0.5°C |
| Memory: |
9000 lectures |
| Sample rate: |
6 seconds to 330 minutes |
| Stack: |
2 x 1.5 volt AA |
| Battery life: |
about 12 months |
| Display: |
12mm LCD / 2 LED |
| Dimensions: |
29x72.5x96mm |
| Weight: |
165 grams |
| Case: |
ABS plastic |
| Country of manufacture: |
United Kingdom |
| Warranty: |
two years |
| Measurement scale: |
Celsius / Fahrenheit |
