Thermadata data recorder without screen

• 2 x External NTC sensors with connectors.
• Probe Ø3.3 x 100 mm, PVC / PFA cable 1 m.
• Beach -40 at 125 ° C.
• Start guide
• Certificate of conformity
• Thermadata Studio software

Noticed : When ordering recorders, it is necessary to order at least A Home Station ( 293-804 ).

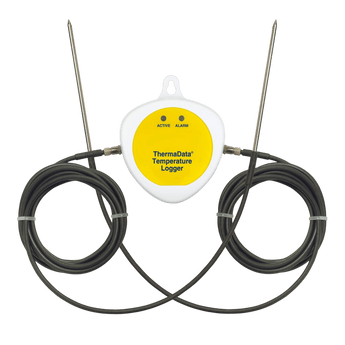

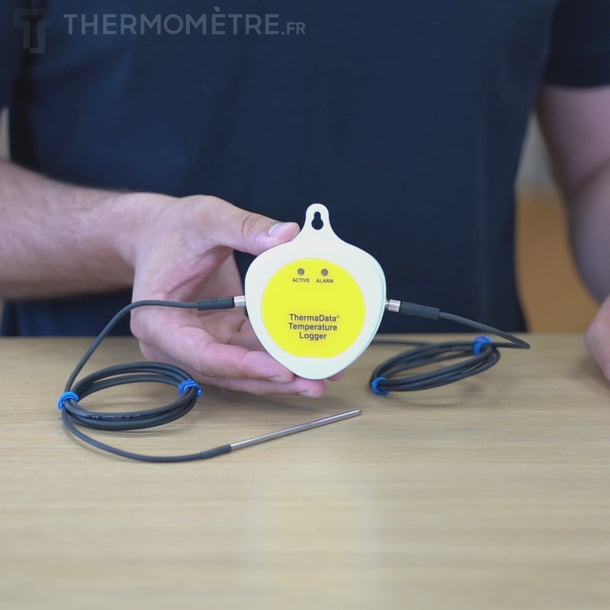

The thermadata® TB2C recorder is a data recorder without screen incorporating two external NTC thermistor sensors with Two pure / pvc cords one meter with probe connectors.

These data recorders measure the temperature on a range of -40 to 125 ° C and can record up to 2 x 2000 lessons.

The TBFC Thermadata® Logger data recorder is housed in a waterproof and ergonomic case that offers IP66/67 protection.

Meets the standard EN 12830: 1999, S&T, C&D, 1, 0.5

Each recorder includes a red and green LED. The flashing green LED indicates that the recorder is active / in recording and the flashing red LED indicates that your personalized alarms have been exceeded. Communications are made via a USB reception station supplied with thermadata® software.

Attention : When ordering recorders, it is necessary to control at least one Thermadata® recording cradle.

The range of thermadata® MK LL recorders offers customers the choice between data recorders screenless or data recorders With LCD screen.

Other options include a temperature sensor / probe internal and external. External probes can be fixed or detachable via a three -pin waterproof connector. Remote temperature probes are provided with a PVC / PVA cable by one meter.
