Thermadata® TDF, LCD recorder with external probe

• NTC thermistor sensor.
• -40 to 125 ° C beach.
• Probe Ø3.3 x 100 mm, PVC / PFA cable 1 m.
• Start guide

• Certificate of conformity
• Thermadata Studio software

Noticed : When ordering recorders, it is necessary to order at least A Home Station ( 293-804 ).

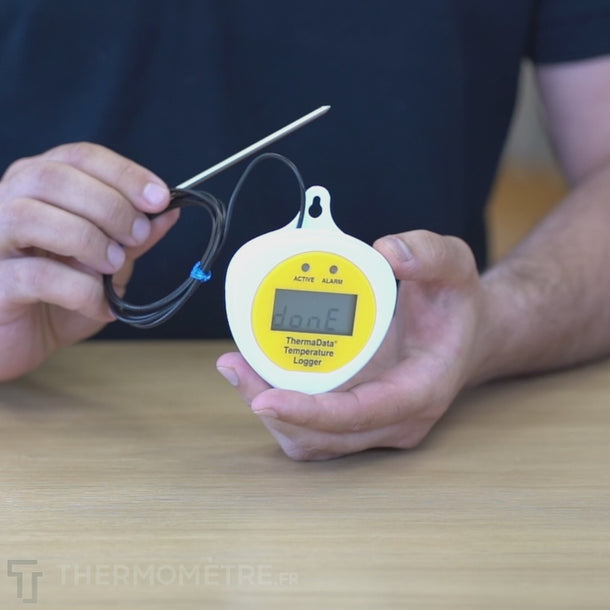

The thermadata TDF data recorder Integrates an external NTC thermistor probe With a PVC/PFA cable of one meter which measures on a range of -40 to 125 ° C and can record up to 4000 readings. The recorder has a clear and easy -to -read LCD screen and is housed in a waterproof and ergonomic case Designed to respond to IP66/67 protection.

Each recorder incorporates a red and green LED, The flashing green LED indicates that the recorder is active/saved and the flashing red LED indicates that your personalized predefined alarms have been exceeded.

Thermadata Studio software

✓ Free download, without subscription fees

✓ Configure your data recorder and program the intervals

✓ Real -time data acquisition

✓ Show data in the form of CV, table or graphic

✓ Several options to download, send by e-mail and print data

✓ Automatically archive Wi-Fi Thermadata data

✓ Store your data locally without storage costs in the cloud

✓ Connect up to 32 Wi-Fi Thermadata instruments

✓ Compatible with PCs

Temperature range: -40 to 125 ° C

Resolution : 0.1 ° C

Precision : ± 0.5 ° C (at an ambient temperature from -10 to 85 ° C)

Memory : 4000 lessons

Sampling rate: 6 seconds at 255 minutes

Food : Aa Half lithium 3.6 Volts & Nbsp;

Battery life: 18 months

Display : LCD 10 mm and 2 LEDs

Dimensions: 76 x 23 mm

Weight : 91 grams

Box: ABS plastic with antibacterial additive Biomaster

Guarantee : two years

Water / dust resistance: Protection IP66 / 67

Measuring scale: Celsius / Fahrenheit

Operating system: Windows

Compliant with the standard: EN 12830: 1999, S&T, C&D, 1, 0.5
