Wiring housing for SCS-R 3/4 sensors
SCS-R is a box Designed and manufactured by TESSYSTEM for a quick, safe and economical connection of the sensors that detect the temperature of the transformers into a casting resin.
The length of the cables, as well as the type of sensor, can be determined according to the specific needs of the customer.

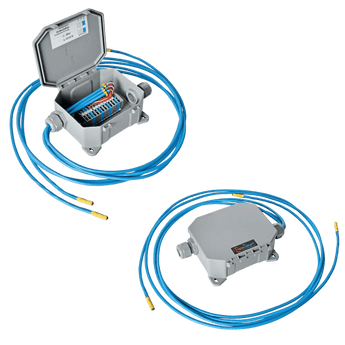

In the standard version, as shown in the photos, it comes with 3 PT100 PT100 sensors with cable of 2.5 m each.
Box characteristics
- Dimensions: 187x128x58 mm (Highlights included)
- Material: polyamide ul 94v0
Characteristics of the stretch press
- Dimensions: PG16
- Material: polyamide ul 94v0
Characteristics of the terminal block
- Wiring section: from 0.25 to 1.5 mm²
- Fire resistance: UL 94V0
- Operating temperature: from -20 ° C to +120 ° C
The application of the SCS is intended for industrial environments and limited to TECSYSTEM products and/or optional predefined accessories.
The installation of the SCS is provided on industrial transformers in resin with an IP00 protection degree and an internal working environment with: temperature of -25 ° C to + 40 ° C and moisture max 90% without condensation.
On specific request, it is possible to assemble the SCS with special components, which must be approved by the customer.
