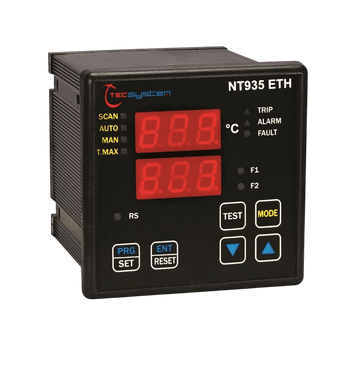

NT935 ETH controller
The NT935 ETH is an innovative electronic device based on a microcontroller, designed for dry transformers and molded resin, with integrated Ethernet port.
Equipped with all the functions necessary to monitor and control the temperature of the transformer, as well as the existing product line NT935, it is presented, in this 2016 edition, with a more functional version of the hardware and software.
Communication with the network is done via the Modbus TCP/IP protocol, which allows the user to display and program all the functions of the unit from the comfort of his office!
The NT935 ETH keeps the traditional 4 PT100 inputs (windings + ambient) and 5 alarm, trip, fan1, fan2 and fault relays, as well as new functions and a renewed display on the front and thanks to the versatility of the new 2016 edition 2016 , other sensor inputs are available.
On request, the unit is available with Certification C Ul us for the Canadian and American market as well as Rina For marine applications.
All our units can also be provided with a special coating on electronic cards, resistant to difficult climatic conditions, particularly characterized by high temperature and humidity (which are those of tropical climates).
Power supply: with input from 85 to 260 Vac-DC.
Options
Eth Manager dedicated software
Other versions
NT935 IR ETH With Entries for IR Sensors and Ethernet output (COD.1CN0212)
