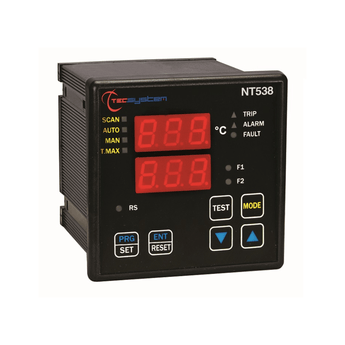

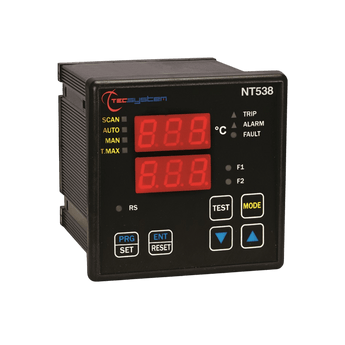

Le contrôleur Tecsystem NT538 AD est doté d'un écran LED avec zéros et de boutons PRG, SET et ENT. Il offre une connectivité Modbus RS485 et dispose d'indicateurs de déclenchement, d'alarme et de défaut, parfaits pour une surveillance efficace de la température du moteur.
Schéma de câblage du contrôleur NT538 AD de Tecsystem montrant les connexions pour l'alimentation, la température du moteur à l'aide des entrées P100, des relais de sortie, de la sortie Modbus RS485 et de la sortie 4-20 mA.
Le contrôleur Tecsystem NT538 AD est doté d'un écran LED avec zéros et de boutons PRG, SET et ENT. Il offre une connectivité Modbus RS485 et dispose d'indicateurs de déclenchement, d'alarme et de défaut, parfaits pour une surveillance efficace de la température du moteur.
Schéma de câblage du contrôleur NT538 AD de Tecsystem montrant les connexions pour l'alimentation, la température du moteur à l'aide des entrées P100, des relais de sortie, de la sortie Modbus RS485 et de la sortie 4-20 mA.

Controller NT538 AD

0,00 €
Price excluding taxes. Shipping costs calculated at the payment stage.
1CN0137
In stock

Unit based on an electronic microcontroller for the temperature monitoring of electric motors and MT -type MT/Type transformers, the NT538AD, thanks to the 8 input channels and the multiple programming options, offers great flexibility of use in many applications.

Developed with the layout and advantages of the new technological platform (double display, voting function, new microcontroller with operational capacity and increased data management), the NT538 AD provides the user, in a single product, outings:

  • Analog 4-20 my
  • Digital Modbus RS485

It is equipped with 8 entries for PT100 sensors and thanks to the versatility of the new 2016 edition, other sensor entries are available.

It is equipped with 5 Dry contact, Alarm and Trip, FAULT contact outlets for operating anomalies and control of the FAN1 and FAN2 cooling system.
On request, the unit is available with certification for Canadian and American markets Culus, as well as Rina for sea applications.

All our units can also be provided with a special coating on electronic cards, resistant to difficult climatic conditions, particularly characterized by high temperature and humidity (which are those of tropical climates).

Universal food: With entry from 24 to 240 Vac-DC.

Other versions
Unit NT538 Basic without any output such as analog or digital (cod. 1CN0156)

Options

  • Unit NT538 Basic EN50121-5 (Cod. 1CN0210)
  • NT538AD EN50121-5 (code 1CN0211)
