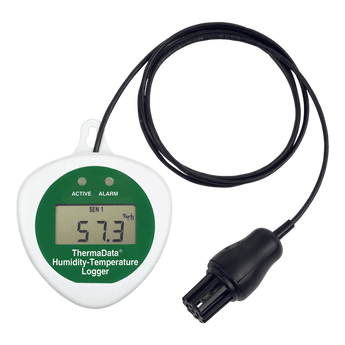

HTDF humidity temperature data recorder

• Double function data recorder.
• Tilting display between humidity and temperature.
• Visual LED shows if the limits are exceeded.
• Manual
• Certificate of conformity
• Thermadata Studio software

Noticed : When ordering recorders, it is necessary to order at least A Home Station ( 293-804 ).

HTDF humidity recorder is a data recorder that measures and records both relative humidity and temperature on a range from -20 to 85 ° C and from 0 to 100% HR.

At programmable intervals, the HTDF humidity recorder recorded temperature and humidity simultaneously , recording up to a maximum of 16,000 readings (8,000 humidity and 8,000 temperature).

The thermadata HTDF humidity recorder has a Integrated LCD screen which displays temperature and humidity levels and includes internal humidity and temperature sensors.

A Ukas humidity calibration certificate In 3 points (25, 50 and 75% HR) is available as an option at a preferential purchase price with these thermo-hygrometers.

Each humidity recorder Includes a red and green LED, the flashing green LED indicates that the recorder is active / connecting and the flashing red LED indicates that your personalized predefined alarms have been exceeded.

Thermadata recorders are suitable for a wide range of applications, in particular monitoring of the HVAC climate, quality control or storage zones and many others

Beach - Temperature: -20 to 85 ° C

Beach - Humidity: 0 to 100% HR

Resolution - Temperature: 0.1 ° C

Resolution - Humidity: 0.1% HR

Precision - temperature: ± 0.5 ° C (0 to + 45 ° C), ± 1 ° C (-20 to + 70 ° C), ± 1.5 ° C (+70 to + 85 ° C)

Precision - Humidity: ± 3% HR @ + 25 ° C (10 to 90% HR)

Hysteresis - humidity: ± 1% HR

Memory : 2 x 8000 conferences

Sampling rate: 6 seconds at 255 minutes

Stack : 3.6 volts half aa lithium

Autonomy: Minimum 2 years

Type of sensor: Temperature: Silicone prohibited band - Humidity: capacitive polymer

Display : LED 10 mm rocks every 6 seconds / 2 LEDs

Dimensions: 76 x 23 mm

Weight : 80 grams

Case material: ABS plastic with antibacterial additive Biomaster

Water / dust resistance: water -resistant

Measuring scale: Celsius / Fahrenheit &% HR

BONE : Windows
