Thermometer

ThermaData TDF data logger, LCD with external fixed sensor

ThermaData TDF data logger, LCD with external fixed sensor

REFERENCENPI-AR005674

  • NTC thermistor sensor.
  • Range from -40 to 125°C.
  • Probe Ø3.3 x 100 mm, cable PVC / PFA 1 m.
  • UKAS 5 point certificate optional.
  • User Manual

Remark :  when ordering recorders, it is necessary to order at least one support ThermaData® recorder.



Certification
Usual price 94,00 € HT
Usual price Sale price 94,00 € HT
Limited time Exhausted

2 Produits en stock.

Description ThermaData TDF data logger, LCD with external fixed sensor

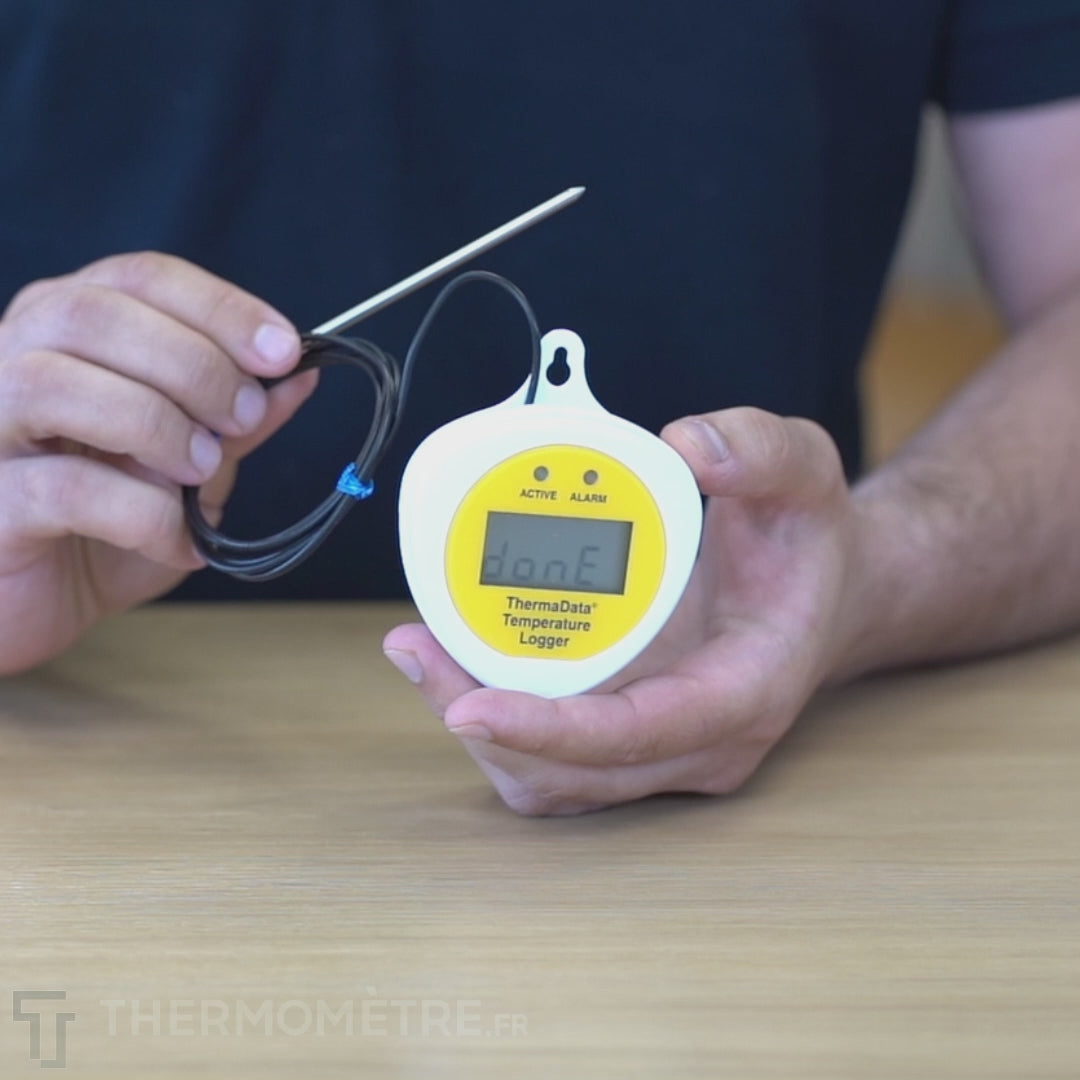

The ThermaData ® TDF data logger includes NTC thermistor probe external with a one meter PVC/PFA cable that measures over a range -40 to 125°C and can store up to 4000 readings.

The ThermaData ® TDF recorder has a clear and easy to read LCD display and is housed in a waterproof and ergonomic case designed to meet the protection IP66 / 67 .

The ThermaData ® logger Mk2 range offers the customer the choice between blind data loggers or data loggers with LCD display.

External probes can be fixed or detachable via a three-pin waterproof connector.

Remote temperature sensors are supplied with a PVC / PVA cable one meter.

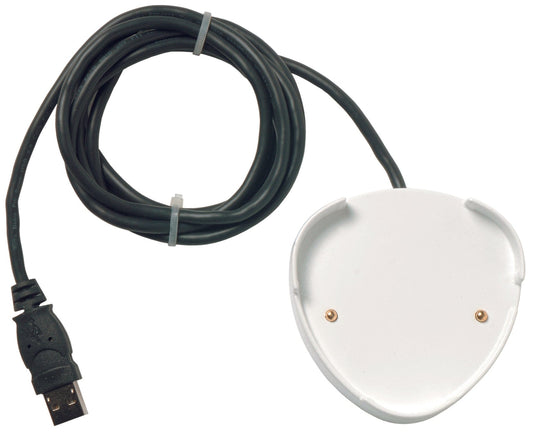

The communications are made via a supplied USB cradle with ThermaData ® Studio software.

Remark : when ordering loggers, it is necessary to order at least one ThermaData ® logger holder.

The ThermaData Mk2 series logger consists of a complete range of portable data loggers using the latest electronic technologies .

Each recorder incorporates a red and green LED , the flashing green LED indicates that the logger is active / logging and the flashing red LED indicates that your custom alarms have been exceeded.

In designated data the appropriate icon, the data can be viewed and displayed in graph, table or summary form.

Information can be analyzed by zooming, saving as a Studio file, or exporting as a text (.txt) or Excel (.xls) file to other software packages.

ThermaData Studio software incorporates several useful functions, including the ability to display two traces on one graph, trace colors are user selectable.

All files can be viewed as thumbnail icons for easy identification.

ThermaData Studio software will also work with all ThermaData loggers.

The software is both powerful and sophisticated, but user-friendly way to organize and analyze temperature data to provide management information.

The software allows the user to program the sample rate / logging interval (0.1 to 255 minutes), real time clock, °C or °F, delayed start (maximum 23 hours, 59 minutes and 59 seconds) or select a magnetic start (option).

he is also possible to include a user ID 32 characters for each recorder.

By selecting the continuous logging in the software options, it is possible to start the ThermaData logger once and never have to reset its settings again, even if it is downloaded regularly.

Unlike most low cost loggers, ThermaData logger continues recording during and after download Datas.

ThermaData Studio software is supplied with each USB cradle .

Range : -40 to 125°C

Resolution : 0,1 °C

Precision :  ± 0.5°C (at an ambient temperature of -10 to 85°C)

Memory :  4000 lessons

Sampling rate: 6 seconds to 255 minutes

Pile :  3,6 volts demi-lithium AA

Battery life: 18 months

Display: LCD 10 mm et 2 LED

Dimensions : 76 x 23 mm

Weight : 91 grammes

Case: ABS plastic with Biomaster antibacterial additive

Guarantee  two years

Water/dust resistance: protection IP66 / 67

Measuring scale : Celsius / Fahrenheit

YOU : the Windows

To comply with the standard : EN 12830: 1999, S&T, C&D, 1, 0.5
