ThermaData TD2F data logger - LCD with two external fixed sensors

Starting price € 104,40 - Starting price € 104,40
Starting price
€ 104,40
€ 104,40 - € 104,40
Current price € 104,40
Ht price
UGC AR005675
  • Ø3,3 x 100mm probe, PVC / PFA cable 1m.
  • 2x external fixed NTC thermal sensors.
  • Range -40 to 125 ° C.
  • UKAS 5-point certificate optional.

Note: when ordering recorders, it is necessary to order at least one support ThermaData® recorder.



For any quantity greater than 50 pieces, we invite you to contact us by e-mail or via our form.

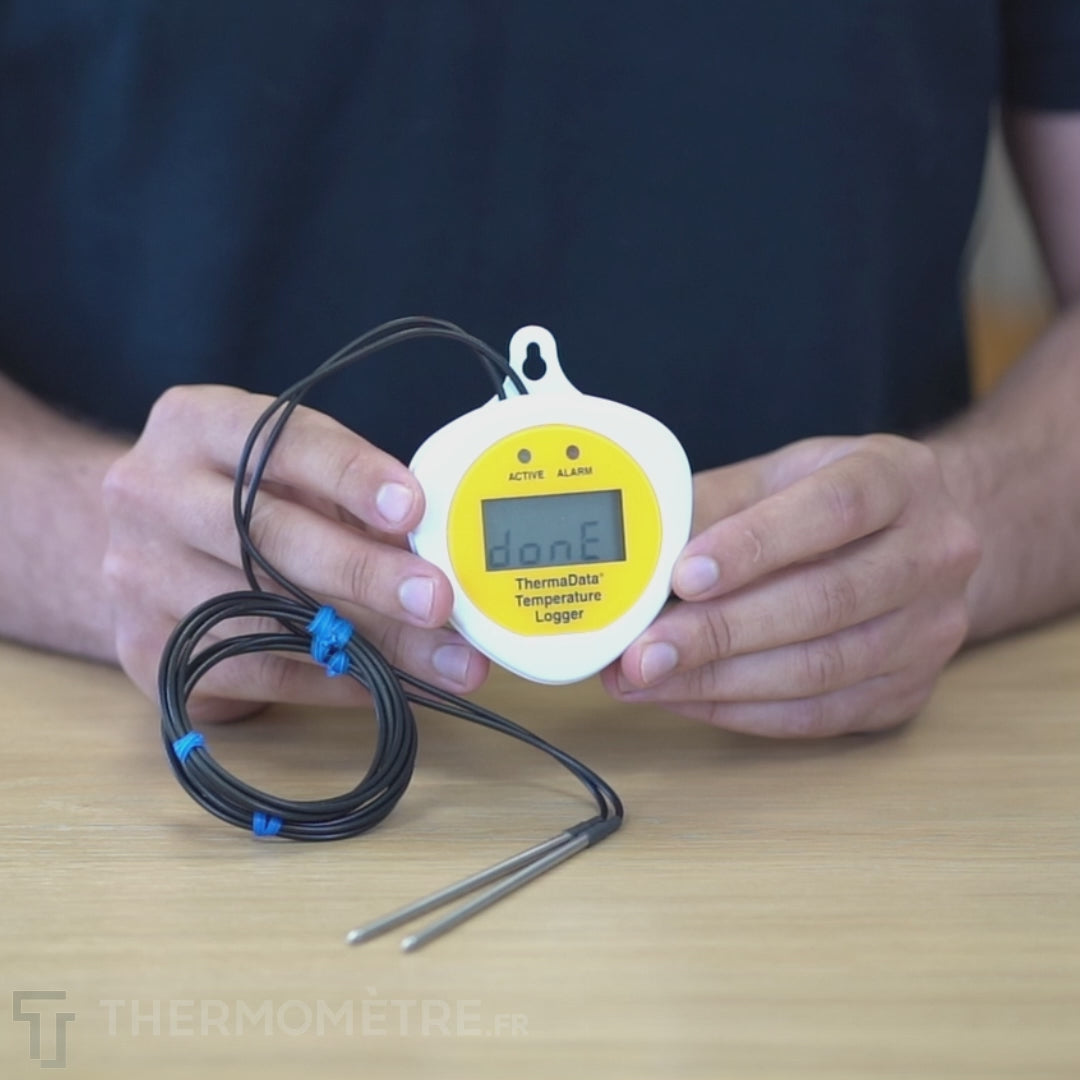

The ThermaData® TD2F data logger has a clear, easy-to-read LCD display and includes two NTC thermistor probes external fixed with two one-meter PVC / PFA wires that measure over a range -40 to 125 ° C and can record up to 2 x 2000 conferences.

The ThermaData® TD2F data logger is housed in a waterproof case and designed to meet protection IP66 / 67 .

The TD2F recorder includes an LCD display and Red and green LEDs , the flashing green LED indicates that the logger is active / logging and the flashing red LED indicates that your custom alarms have been exceeded.

Note: When ordering loggers it is necessary to order at least one ThermaData® logger holder.

The ThermaData Mk2 logger consists of a complete line of portable data loggers using the latest electronic technologies .

The ThermaData logger Mk2 range offers the choice between blind data loggers or data loggers with LCD display.

External probes can be fixed or detachable via a waterproof three-pin connector.

Remote temperature sensors are supplied with a cable PVC / PFA (fixed) or PUR / PVC (removable) of one, two or three meters (if indicated).

Beach: -40 To 125 ° C

Resolution: 0,1°C

Accuracy: ± 0,5 ° C (at an ambient temperature of -10 to 85 ° C)

Memory : 2 x 2000 conferences

Sampling rate: 6 seconds to 255 minutes

Battery: 3,6 volts half AA lithium

Battery life : 18 months

Display: 10 mm LCD and 2 LEDs

Dimensions: 76 x 23 mm

Weight: 103 grams

Housing materials: ABS plastic with Biomaster antibacterial additive

Manufacturing country : UK

Warranty: two years

Water / dust resistance: IP66 / 67 protection

Measuring scale : Celsius / Fahrenheit

OS: Windows

To comply with the standard : EN 12830: 1999, S&T, C & D, 1, 0,5
