Note: when ordering recorders, it is necessary to order at least one support ThermaData® recorder.
For any quantity greater than 50 pieces, we invite you to contact us by e-mail or via our form.

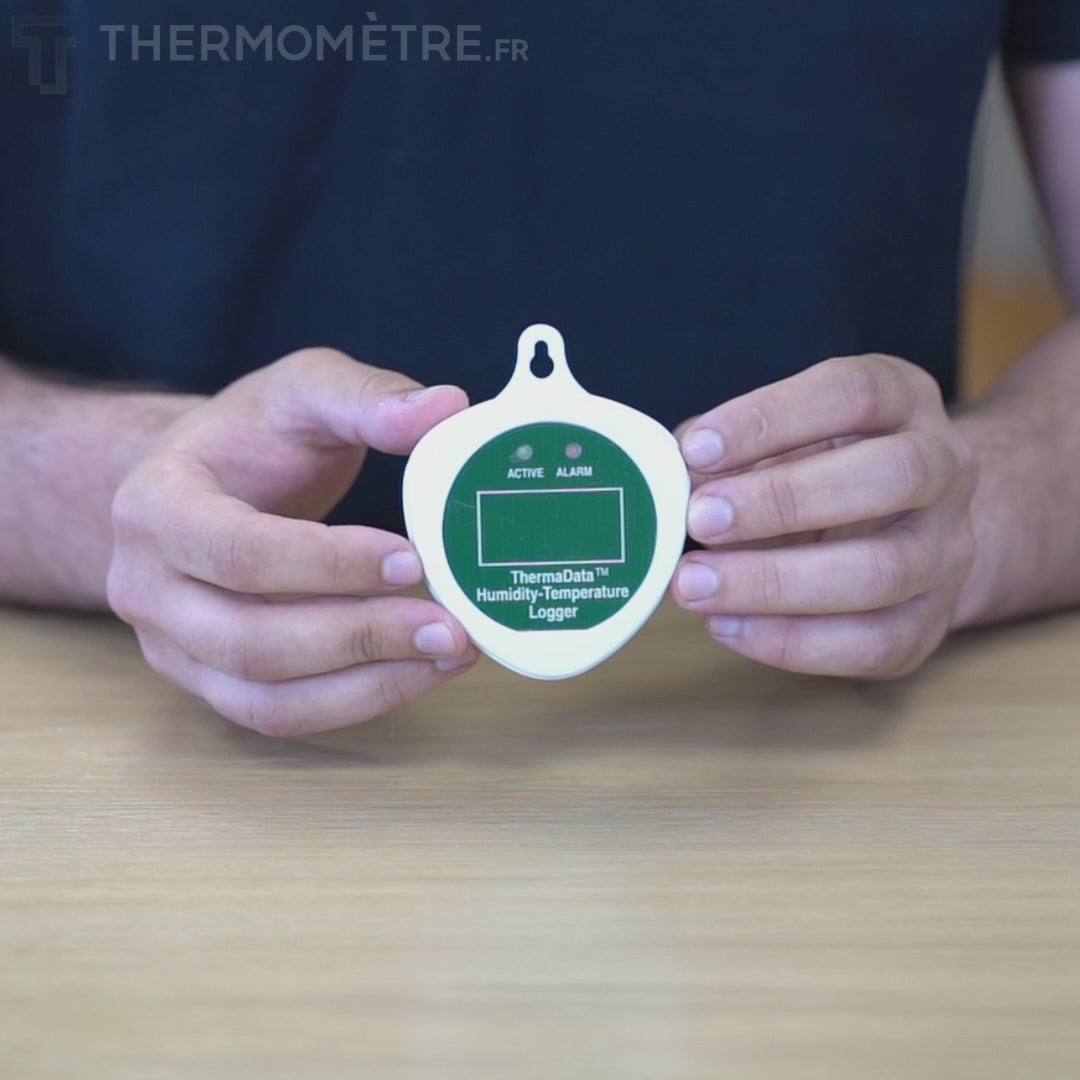

The HTB humidity data logger is a portable blind recorder which measures and records both relative humidity (% RH) and temperature over a range -20 to 85 ° C and from 0 to 100% RH.
ThermaData® humidity and temperature loggers suitable for a wide range of applicationsincluding HVAC climate monitoring, quality control or storage areas and many more.
Note: When ordering loggers it is necessary to order at least one ThermaData® logger holder.
At programmable intervals, the HTB humidity logger simultaneously records temperature and humidity, recording up to a maximum of 16 readings (000 humidity and 8 temperature).
The ThermaData® HTB humidity data logger includes internal humidity and temperature sensors.
Each HTB ThermaData® recorder includes red and green LED, the flashing green LED indicates that the logger is active / connecting and the flashing red LED indicates that your custom preset alarms have been exceeded.
Un UKAS humidity calibration certificate in 3 points (25, 50 and 75% RH) is available as an option at a preferential price when purchasing these thermo-hygrometers.
Range - temperature: -20 to 85 ° C
Range - humidity: 0 to 100% RH
Resolution - temperature: 0,1 ° C
Resolution - humidity: 0,1% RH
Accuracy - temperature: ± 0,5 ° C (0 to 45 ° C), ± 1 ° C (-20 to 70 ° C), ± 1,5 ° C (+70 to 85 ° C)
Accuracy - humidity: ± 3% RH at 25 ° C (10 to 90% RH)
Hysteresis - humidity: ± 1% RH
Memory : 2 x 8000 readings
Sampling rate: 6 seconds to 255 minutes
Drums : 3,6 volts half AA lithium
Autonomy: 2 years minimum
Type of sensor: temperature: silicone band gap - humidity: capacitive polymer
Display: 2 LED
Dimensions: 76 x 23 mm
Weight: 80 grams approximately. - depends on the model
Housing materials: ABS plastic with Biomaster antibacterial additive
